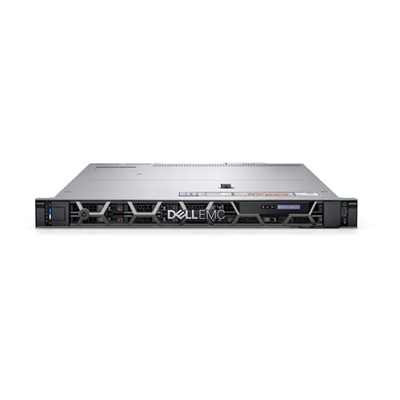

PowerEdge R450 Silver 4310

Feature Technical Specifications

Processor Up to two 3rd Generation Intel Xeon Scalable processors, with up to 24 cores per processor

Memory

Memory 16 DDR4 DIMM slots, supports RDIMM max 1 TB, speeds up to 2933 MT/s

Storage controllers

• Internal controllers (RAID): PERC H345, PERC H745, PERC H755, S150

• Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem

(BOSS-S2): HWRAID 2x M.2 SSDs or USB

• External PERC (RAID): PERC H840

• 12 Gbps SAS HBAs (non-RAID): internal-HBA355i, external-HBA355e

Drive Bays Front bays:

• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB

• Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB

Power Supplies

• 1100 W DC / -48–(-60) V

• 800 W Platinum AC / 240 V HVDC

• 600 W Platinum AC / 240 V HVDC

Cooling options Air cooling

Fans

• Standard (STD) fans or High performance SLVR fans

• Up to seven cold swap fans

Dimensions

• Height – 42.8 mm (1.7 inches)

• Width – 482 mm (18.97 inches)

• Depth – 734.95 mm (28.92 inches) – without bezel

748.79 mm (29.47 inches) – with bezel

Form Factor 1U rack server

Embedded Management

• iDRAC9

• iDRAC Service Module

• iDRAC Direct

• Quick Sync 2 wireless module

Bezel Optional LCD bezel or security bezel

OpenManage Software

• OpenManage Enterprise

• OpenManage Power Manager plugin

• OpenManage SupportAssist plugin

• OpenManage Update Manager plugin

Mobility OpenManage Mobile

Integrations and Connections OpenManage Integrations

• BMC Truesight

• Microsoft System Center

• Red Hat Ansible Modules

• VMware vCenter and vRealize Operations Manager

OpenManage Connections

• IBM Tivoli Netcool/OMNIbus

• IBM Tivoli Network Manager IP Edition

• Micro Focus Operations Manager

• Nagios Core

• Nagios XI

Security

• Cryptographically signed firmware

• Secure Boot

• Secure Erase

• Silicon Root of Trust

• System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional

Embedded NIC 2 x 1 GbE LOM

Network Options 1 x OCP 3.0

GPU Options NA

Ports Front Ports

• 1 x Dedicated iDRAC Direct micro-USB

• 1 x USB 3.0

• 1 x VGA

Rear Ports

• 1 x USB 2.0

• 1 x Serial (optional)

• 1 x USB 3.0

• 2 x Ethernet

• 1 x VGA

Internal Ports

• 1 x USB 3.0 (optional)

PCIe 2 x PCIe Gen4 slots

Operating System and Hypervisors

• Canonical Ubuntu Server LTS

• Citrix Hypervisor

• Microsoft Windows Server with Hyper-V

• Red Hat Enterprise Linux

• SUSE Linux Enterprise
