PowerEdge R450 Silver 4310

78,000,000 đ
    Mã sản phẩm: 2TB NLSAS 4x3.5 inch

    Bảo hành: 36 Tháng

  • CPU: Intel Xeon Silver 4310 18M Cache 2.10 GHz
  • RAM: 16GB DDR4 3200Mhz ECC Registered DIMMs
  • HDD/SSD: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5'' Hot-plug
  • RAID: PERC H755
  • PCIe: 2 x PCIe Gen4 slots
  • Network: 2 x 1 GbE LOM
  • Optical Drive: DVD
  • Power Supply: 600W (0+1)
  • Lượt xem: 942
Số lượng

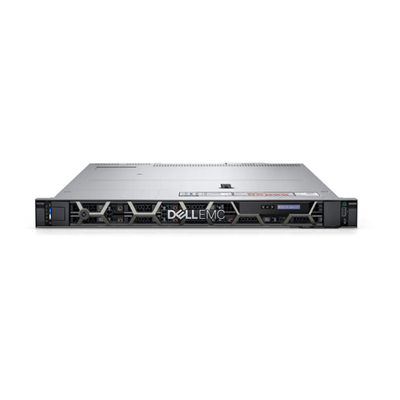

Máy chủ Dell EMC Poweredge R450

Form: Rack 1U Chassis with up to 4x3.5" Drives

CPU: Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache

RAM: 16GB RDIMM, 3200MT/s Dual Rank

HDD/SSD: 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5'' Hot-plug

RAID: PERC H755

Khe cắm pci: 2 x PCIe Gen4 slots,iDRAC9

Network: 2 x 1 GbE LOM

DVD: DVD

Nguồn: Single, Hot-plug, Redundant Power Supply (0+1), 600W

Bộ vi xử lý CPU / PROCESSOR:

    x

Bộ nhớ RAM / MEMORY:

    x

Ổ đĩa cứng SAS:

x Tray khi chọn option sas
    x

Feature Technical Specifications

Processor Up to two 3rd Generation Intel Xeon Scalable processors, with up to 24 cores per processor

Memory

Memory 16 DDR4 DIMM slots, supports RDIMM max 1 TB, speeds up to 2933 MT/s

Storage controllers

• Internal controllers (RAID): PERC H345, PERC H745, PERC H755, S150

• Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem

(BOSS-S2): HWRAID 2x M.2 SSDs or USB

• External PERC (RAID): PERC H840

• 12 Gbps SAS HBAs (non-RAID): internal-HBA355i, external-HBA355e

Drive Bays Front bays:

• Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB

• Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB

Power Supplies

• 1100 W DC / -48–(-60) V

• 800 W Platinum AC / 240 V HVDC

• 600 W Platinum AC / 240 V HVDC

Cooling options Air cooling

Fans

• Standard (STD) fans or High performance SLVR fans

• Up to seven cold swap fans

Dimensions

• Height – 42.8 mm (1.7 inches)

• Width – 482 mm (18.97 inches)

• Depth – 734.95 mm (28.92 inches) – without bezel

748.79 mm (29.47 inches) – with bezel

Form Factor 1U rack server

Embedded Management

• iDRAC9

• iDRAC Service Module

• iDRAC Direct

• Quick Sync 2 wireless module

Bezel Optional LCD bezel or security bezel

OpenManage Software

• OpenManage Enterprise

• OpenManage Power Manager plugin

• OpenManage SupportAssist plugin

• OpenManage Update Manager plugin

Mobility OpenManage Mobile

Integrations and Connections OpenManage Integrations

• BMC Truesight

• Microsoft System Center

• Red Hat Ansible Modules

• VMware vCenter and vRealize Operations Manager

OpenManage Connections

• IBM Tivoli Netcool/OMNIbus

• IBM Tivoli Network Manager IP Edition

• Micro Focus Operations Manager

• Nagios Core

• Nagios XI

Security

• Cryptographically signed firmware

• Secure Boot

• Secure Erase

• Silicon Root of Trust

• System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• TPM 1.2/2.0 FIPS, CC-TCG certified, TCM 2.0 optional

Embedded NIC 2 x 1 GbE LOM

Network Options 1 x OCP 3.0

GPU Options NA

Ports Front Ports

• 1 x Dedicated iDRAC Direct micro-USB

• 1 x USB 3.0

• 1 x VGA

Rear Ports

• 1 x USB 2.0

• 1 x Serial (optional)

• 1 x USB 3.0

• 2 x Ethernet

• 1 x VGA

Internal Ports

• 1 x USB 3.0 (optional)

PCIe 2 x PCIe Gen4 slots

Operating System and Hypervisors

• Canonical Ubuntu Server LTS

• Citrix Hypervisor

• Microsoft Windows Server with Hyper-V

• Red Hat Enterprise Linux

• SUSE Linux Enterprise
