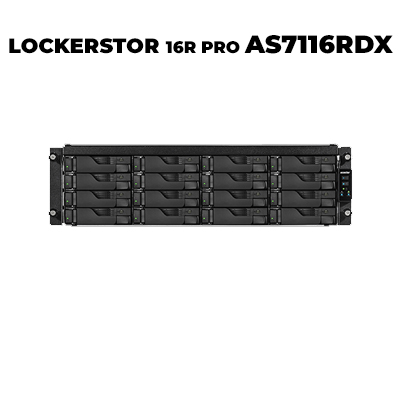

Asustor LOCKERSTOR 16R Pro AS7116RDX

Hardware Specifications

CPU Model Intel Xeon E-2224

CPU Architecture x64 64-bit

CPU Frequency Quad-Core 3.4GHz up to 4.6GHz

Memory 8GB DDR4 ECC UDIMM

Memory Module Pre-installed 8GB (1 x 8GB)

Total Memory Slots 4

Memory Expandable up to  128GB (4 x 32GB)

Support mixed capacity

Flash Memory 8GB USB DOM

Storage HDD 12 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD

M.2 Drive Slots 2x M.2 PCIe (NVMe) / SATA;M.2 22110, 2280, 2260, 2242.

Maximum Internal Raw Capacity 216TB

(18 TB HDD X 12, Capacity may vary by RAID types)

Maximum Drive Bays with Expansion Unit 36

Maximum Raw Capacity with Expansion Units 360TB (18 TB HDD X 20, Capacity may vary by RAID & M.2 types)

Expansion USB 3.2 Gen 2 x 4 Type-A ; USB 3.2 Gen 2 x 2 Type-C

Network Gigabit Ethernet x 4 (1G/100M)

PCIe Expansion:: 2 x Gen3 x4 slots (x4 link) ; 1 x Gen3 x8 slots (x8 link)

for optional 10/25/40/50 GbE card and SAS card

HDMI Output N/A

Power Supply Unit / Adapter 550W x2
