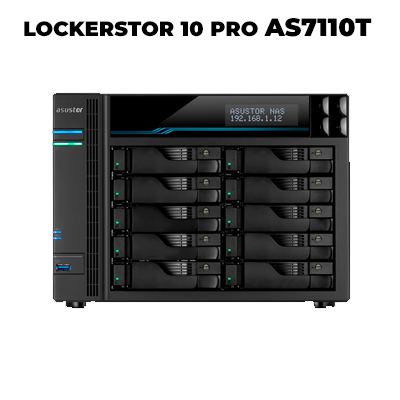

Asustor LOCKERSTOR 10 Pro AS7110T
CPU: Intel Xeon E-2224
RAM: 8GB SO-DIMM DDR4, 8GB eMMC
HDD: 10 x SATA3 6Gb/s; 3.5" HDD
M.2 Drive Slots: 2x M.2 PCIe (NVMe) / SATA
External port: USB 3.2 Gen 1 x4
Network: Front USB 3.2 Gen 1 x 1; Rear USB 3.2 Gen 2 x 2
HDMI Output : N/A
PCIe Expansion Slots: PCIe 3.0 x8 slot (black, x4 link)
Power Supply Unit / Adapter : 350W x1
Hardware Specifications
CPU Model Intel Xeon E-2224
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 3.4GHz up to 4.6GHz
Memory 8GB DDR4 ECC SO-DIMM
Memory Module Pre-installed 8GB (1 x 8GB)
Total Memory Slots 2 Memory Expandable up to 64GB (2x 32GB)
Support mixed capacity Flash Memory 8GB USB DOM
Storage HDD 10 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
M.2 Drive Slots 2x M.2 PCIe (NVMe) / SATA; M.2 2280, 2260, 2242.
Maximum Internal Raw Capacity 180 TB
(18 TB HDD X 10, Capacity may vary by RAID types)
Maximum Drive Bays with Expansion Unit 22
Maximum Raw Capacity with Expansion Units 396 TB
(18 TB HDD X 22, Capacity may vary by RAID types)
External Ports Expansion Front USB 3.2 Gen 1 x 1; Rear USB 3.2 Gen 2 x 2
Network 10 Gigabit Ethernet x 1(10G/5G/2.5G/1G/100M);
2.5 Gigabit Ethernet x 3 (2.5G/1G/100M)
HDMI Output N/A
Power Supply Unit / Adapter 350W x1
