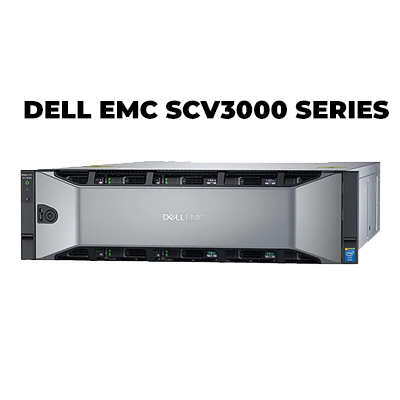

SCv3000 Series Models
The base array is available in two 3U “all-in-one” configurations. Both models include dual controllers with 6-core Intel processors, 32GB memory (16GB per controller) and flexible 10Gb iSCSI, 12Gb SAS or 16Gb FC network connections.
SCv3000 – (16) 3.5” drive slots ; SCv3020 – (30) 2.5” drive slots
Optional expansion enclosures let you scale up to 222 drives, or 1PB per array* – with even larger scale-out potential in federated multi-array systems. All three expansion enclosures may be used with either base array. All array and expansion enclosure models support a variety of SSD, 15K, 10K and NLSAS drives (including FIPS-certified SEDs).
SCv300 – (12) 3.5” drive slots, 2U; SCv320 – (24) 2.5” drive slots, 2U
SCv360 – (60) 3.5” drive slots, 4U
Tech Specs & Customization
Data Mobility and Migration
Replication
Replicates with other SC Series arraysi
Synchronous/Asynchronous via FC or iSCSI
Per-volume QoS bandwidth prioritization
Target/source relationships may be one-to-many or many-to-one
Supports all SC data services on source and target volumes
Change replication types and topologies on demand
Supports cross-platform replication with PS Series/EqualLogic arrays (either direction)
Volume mobility
Live Migrate (included in base product) enables host-transparent data movement among arrays; see also Federation section
Federated multi-array systems
Live Migrate (included in base product) enables host-transparent movement of volumes among arrays
Snapshots maintained/preserved during migration
Thin Import
Space-efficient, non-disruptive data migration from PS Series (EqualLogic) arrays
Thin Clones
Clone standalone volumes with zero duplication of data
Clones maintain independent snapshots and replication
Ideal for VDI, test/dev, other applications that require discrete instances of common data
More efficient than dedupe for database copies
Data Optimization
Auto-tiering method
Policy-based migration based on real-time data usage, customizable 512KB-4MB page size.
Auto-tiering structure
Up to 3 primary (media-based) tiers total, up to 2 SSD tiers (write- and read-intensive SSDs)
Tiering customizations
User-defined profiles, option to “pin” volumes to any tier
RAID support
RAID 0, 1, 5, 6, RAID 10, and RAID 10 DM (Dual Mirror); any combination of RAID levels can exist on a single array
